Options :
Each or Pack of 6
Dimensions: 1.3 in H x 0.5 in W x 2.5 in D

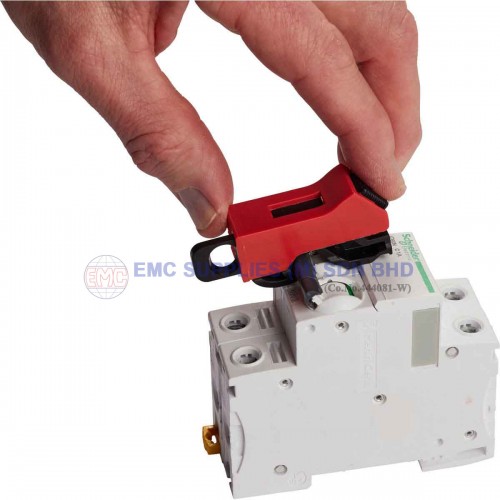

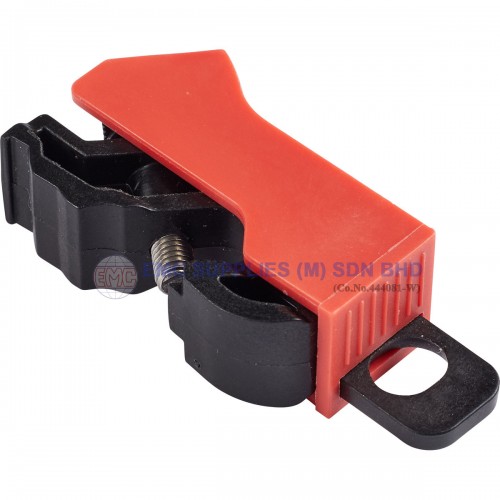

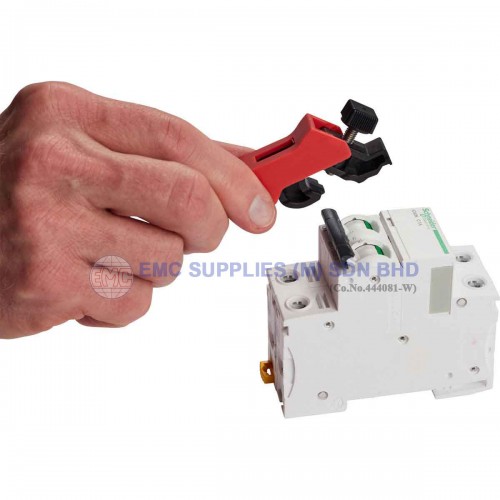

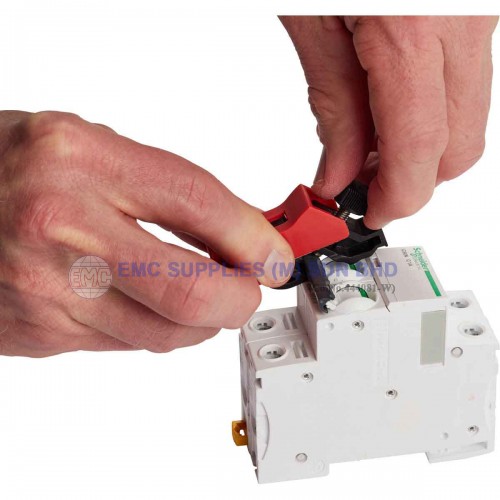

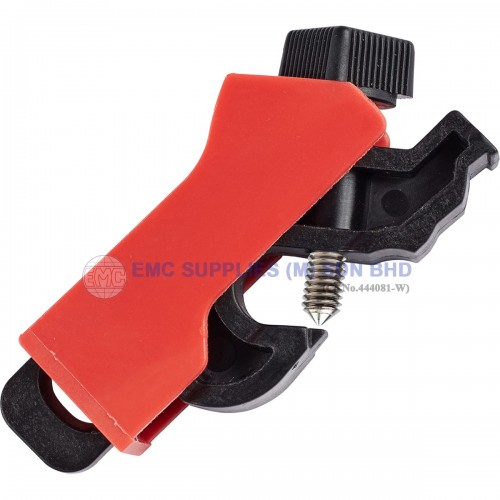

Miniature Circuit Breaker Lockouts are a safe and effective method for locking out miniature circuit breakers, commonly used in European and Asian equipment.
- Easy installation with no tools required
- Low profile design allows panel door closure
- Available for single and multi-pole breakers
- Attach a Brady safety padlock to complete lockout
Specifications
| Key Characteristics | Catalog Page # | 222 | |
| Product Number | 149514 /
|
||
| UPC | 754473606183 /
|
||
| UOM | Each /
|
||
| Brand Name | Brady® | ||
| Country of Origin | China | ||
| HTS Code (Harmonized Tariff Schedule) | 3926.90.9985 | ||
| ECCN (Export Commodity Control Number) | EAR99 |
| Dimensions | Dimensions | 1.3 in H x 0.5 in W x 2.5 in D |
| Height | 1.3 in | |
| Width | 0.5 in | |
| Depth | 2.5 in |
| Material Characteristics | Material Number | LOTO-96 (View Technical Data Sheet) |
| Material | Fiberglass Reinforced Nylon | |
| Lockout Material | Fiberglass Reinforced Nylon | |
| Color | Red | |
| Service Temperature Range °F | -4 °F - 248 °F | |
| Minimum Service Temperature °F | -4 °F | |
| Maximum Service Temperature °F | 248 °F |
| Product Features | Maximum Number of Padlocks | 1 |
| Risk Type | Electrical Risk |
| Compatibility | Maximum Shackle Diameter | 0.28 in |
| Compliance | UNSPSC | 39121901 |
Brady Universal Mini Circuit Breaker Lockout
- Brand: Brady
- Product Code: Mini Circuit Breaker Lockout
- Availability: 2-3 Days
