Material

Body aluminium alloy, black anodised. Rail and rollers carbon steel (100Cr6), retainer stainless steel (AISI 304).

Technical Notes

Base and carriage with standard hole pattern. The top can be machined as required, taking care to disassemble first and ensure no dirt ingress.
Alternatively we can machine any extra holes required (additional cost).
Recommended allowable load is 1/3 of max. static load giving a safety factor of over 3.

Tips

Stroke is centred on the mid-point of the slides (ie 50% of total stroke each way).

Download Catalog



GET A FREE QUOTE TODAY!!!

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

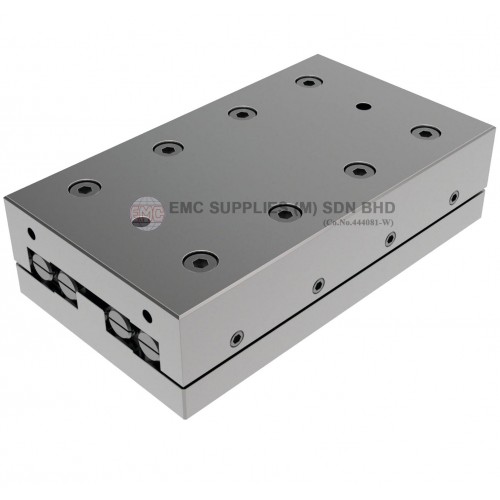

Aluminum Crossed Roller Slide Tables

  • Product Code: Aluminum Crossed Roller Slide Tables
  • Availability: 2-3 Days
