Recirculating Ball Slide Guide consists of a block and a guide rail, both having two R-shape raceway grooves machined by precision grinding. The block consists of a main body having raceway grooves and a resin return cap ensuring smooth circulation of balls. These precision steel balls roll in the respective raceway groove with contact at four points. The raceway surface over which the balls roll is an R-shaped groove, offering a large contact area. The Gothic arch groove, where the balls contact the raceway surface at four points, enables the load and moment to be carried in all directions.

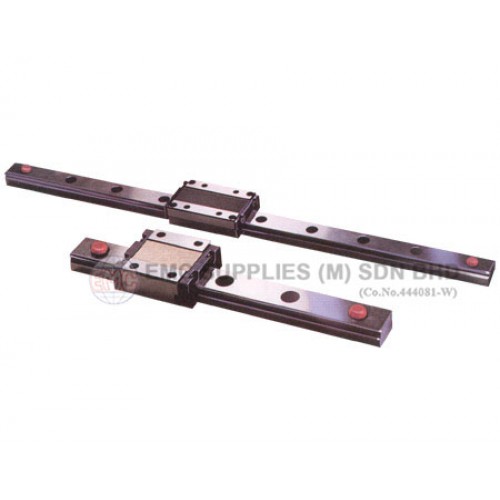

Recirculating Ball Slide Guides
- Product Code: Recirculating Ball Slide Guides
- Availability: 2-3 Days
