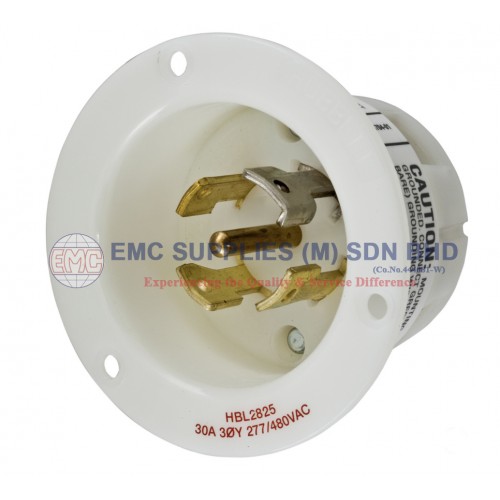

Locking Devices, TwistLock, Industrial, Flanged Inlet, 30A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, L22-30P, Screw Terminal, White.

Specifications

Insulation Insulated Body
Item Type Insulgrip Flanged Inlet
Number of Poles 4-Pole
OEM Brand Name Hubbell WIring Device - Kellems
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
  • Environmental - Moisture Resistance - IP20 Suitability
  • Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accomodation - #16 AWG - #8 AWG solid or stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 500
Type Flanged Inlet
UPC 783585039718
Display Size Standard Sized Product
Height 2.36 in
Length 3.06 in
Weight 0.30 Ib
Width 3.06 in
Amperage Rating 30 A
Connectivity  Back Wired Screw Terminals

Current/Amperage Rating

 30 A
Dielectric Strength Withstands 2,000V minimum
Phase 3 Phase WYE
Voltage Rating 3 Phase WYE 277/480 VAC
Number of Wires 5-Wire
Wire Size #12 AWG to #8 AWG
Nema Rating L22-30P
