Part Number : S3100-W

Maximum Label/Tape Width: 4.25 in

Display Size: 2.85 x 2.15 in

Print Technology: Thermal Transfer

Color Printing Capability: Single Color

Maximum Labels per Day: 600

Continuous & Die-Cut Materials Supported: Continuous and Die-cut

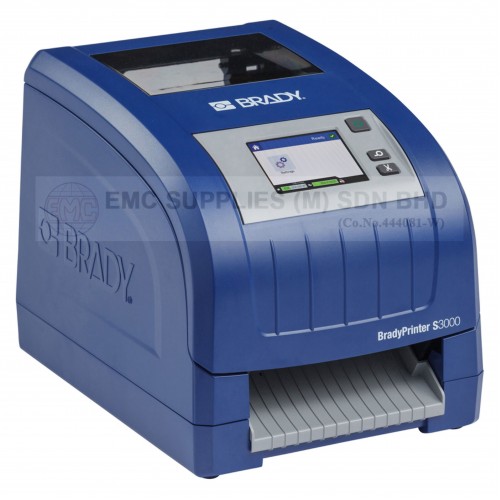

Turn busy work into smarter work. Get state-of-the-art printing capabilities in a compact package with the BradyPrinter S3000 Sign and Label Printer.

  • Get lightning-fast setup times with print smart technology that auto-calibrates print settings when you load materials so you can print on the first label
  • Easily make any adjustments you need to on the large color touchscreen

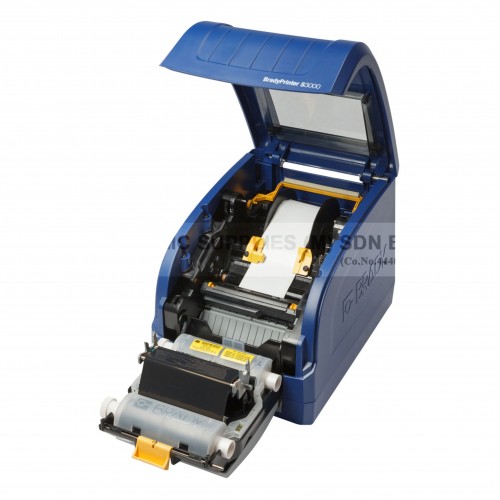

  • Changing materials is made easy with drop-in fool-proof loading so changeovers take as few as 20 seconds
  • Versatility is a friend with more than 330 parts and 26 materials options, including ToughStripe® Floor Marking Tape
  • Move through your print jobs fast with print queue capabilities that automatically prints the next batch after the first one is finished
  • Create labels with ease when you add Brady Workstation Label Creation Software apps and suites
  • Setup is stress free – Contact our Brady Technical Support Team and we will schedule a free phone setup appointment



Specifications

Key Characteristics

Catalog Page #

28



Product Number

149511



UPC

754473606152



UOM

Each



Trade Name

S3000



Brand Name

Brady®



Country of Origin

Malaysia



HTS Code (Harmonized Tariff Schedule)

8443.32.1050



ECCN (Export Commodity Control Number)

EAR99



Dimensions

Sign Size (H x W)

9.5" x 9"



Dimensions

9.5 in H x 9 in W x 12 in D



Height

9.5 in



Width

9 in



Depth

12 in



Display Size

2.85 x 2.15 in



Display Size (Imperial)

2.85 x 2.15 in



Weight

11.7 lb



Product Features

Application

Barcode Labeling, Cold temperature Labeling, Component and Equipment Labeling, Electrical Labeling, Exit and Egress Marking, Facility Identification, Floor Marking, Hazard Communication Identification, Lean and 5S Labeling, Pipe and Valve Marking, Safety Identification, Warehouse Marking



Applications

Barcode Labeling, Cold temperature Labeling, Component and Equipment Labeling, Electrical Labeling, Exit and Egress Marking, Facility Identification, Floor Marking, Hazard Communication Identification, Lean and 5S Labeling, Pipe and Valve Marking, Safety Identification, Warehouse Marking



Connectivity Options

USB



Cut Options Available

Cut at the end of print jobs, Cut between labels, Full Cut



Cutter Type

Auto Cutter



Display Type

Color LCD Touch Screen



Estimated Media Changeover Time

20 seconds



Stand Alone Printing

PC Connect



Mode of Operation

PC Connect



Number of Symbols

See Brady Workstation Software



Plug Type

US



Power Supply Voltage

100 - 240 V @ 50 - 60 Hz



Auto Shut-Off / Power Conserve

User Configurable



Label/Media Format

Media and Ribbon, supplied separately



Ribbon Series

B30 Monocolour Series



Supply Remaining Gauge

Yes



Printing Specifications

Automatic Label Set Up

Yes



Barcode Capability

Yes



Barcode Symbologies - 2D

More Through Brady Workstation



Barcode Symbologies - Linear

More Through Brady Workstation



Calibration Required?

No



Color Printing Capability

Single Color



Font Sizes

4 pt to 350 pt Text



Font Styles

See Brady Workstation



Maximum Labels per Day

600



Maximum Print Speed

4 in/s



Print Resolution

300 dpi



Print Technology

Thermal Transfer



Compatibility

Compatible Media

B30-



Label Material Types

Cold Temperature Tape;Indoor/Outdoor Grade Vinyl;Low-Halide Polyester;Magnetic Supply;Metallized Polyester Tape;Photoluminescent Tape;Pre-Printed GHS/CLP Labels;Pre-Printed Sign Header Labels;Reflective Tape;Repositionable Vinyl;Tags;TOUGHSTRIPE® Floor Marking Labels;ToughWash Washdown Resistant Tape;TOUGHWASH® Washdown Resistant Labels



Continuous & Die-Cut Materials Supported

Continuous and Die-cut



Custom Media Parts Available

No



Maximum Label/Tape Width

4.25 in



Maximum Print Width

4 in



Maximum Printed Label Length

60 in



Minimum Label Length

0.5 in



Maximum Liner Width

4.25 in



Software Compatibility

Brady Workstation, Windows based driver for 3rd party software use



Languages Available

Bulgarian, Chinese (Simplified), Croatian, Czech, Danish, Dutch, English (US), Estonian, Finnish, French (France), German, Hungarian, Italian, Norwegian, Polish, Portuguese (Portugal), Romanian, Russian, Slovak, Slovenian, Spanish (Spain), Swedish, Turkish



What's Included

Includes

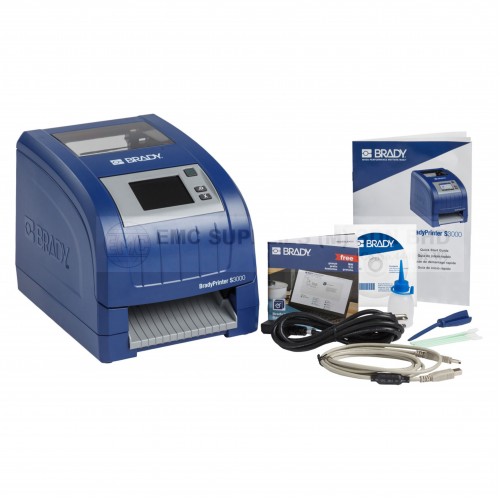

(1) BradyPrinter S3000 Printer (S3000), (1) Cleaning Kit (PCK-6), (1) Cutter Cleaning Tool, (1) Power Cord, (1) Quick Start Guide, (1) USB Cable



Warranty (North America)

5 Years



Warranty

5 Years



Compliance

UNSPSC

45101519



RoHS Compliance Status

Compliant with Directive 2011/65/EU and 2015/863
